What Are Geosynthetics? A Complete Guide to Geomembrane, Geotextiles, and More

Geosynthetics are synthetic materials used in civil, environmental, and geotechnical engineering to enhance soil stability, control erosion, and provide an anti-seepage barrier. Of these, geomembranes and geotextiles are the most widely used, providing waterproofing, containment, and reinforcement solutions. This guide will explore key products such as high-quality HDPE geomembrane liners and LLDPE textured geomembranes, and their applications.

Geomembranes are thin, flexible sheets made from polymers such as HDPE (high-density polyethylene), LLDPE (linear low-density polyethylene), and PVC. They are designed to prevent fluid migration in a variety of projects, from landfills to aquaculture.

HDPE Geomembrane Liners:

Properties: High tensile strength (≥15 MPa), chemical resistance, and UV stability (due to a 2-3% carbon black content).

Applications: Landfill liners, mine tailings ponds, and drinking water reservoirs. For example, a 2.5 mm thick HDPE geomembrane is used for landfill bases and meets U.S. Environmental Protection Agency (EPA) Subtitle D standards.

Advantages: Long service life (over 50 years), low permeability (≤1×10⁻¹³ cm/s), and compliance with GRI GM13/ASTM standards.

LLDPE geomembrane:

Features: Excellent flexibility (elongation ≥700%) and low-temperature resistance (-70°C), making it ideal for uneven terrain.

Textured variants: LLDPE textured geomembranes feature an embossed surface (protrusion height ≥0.4 mm) to increase friction (friction angle 25-35°), thereby stabilizing slopes.

Applications: Landfill covers, aquaculture ponds (such as shrimp farms in Southeast Asia), and heap leach pads for mining.

Geotextiles are woven or non-woven fabrics made of polyester or polypropylene, used as filters, separators, or reinforcement materials.

Non-woven Geotextiles:

Applications: Used as a drainage layer beneath HDPE geomembranes to prevent clogging, or as a cushioning mat for roadbeds (for example, 300g/m² PET geotextiles are used in highway construction).

Woven Geotextiles:

Applications: High-strength embankment stabilization layers (for example, retaining walls with a tensile strength of 80kN/m).

Composite Systems:

Geotextile-geomembrane composites: Combine filtration and seepage control functions. For example, GCL (geosynthetic clay liner) combines bentonite with geotextiles for self-healing seepage.

Environmental Protection:

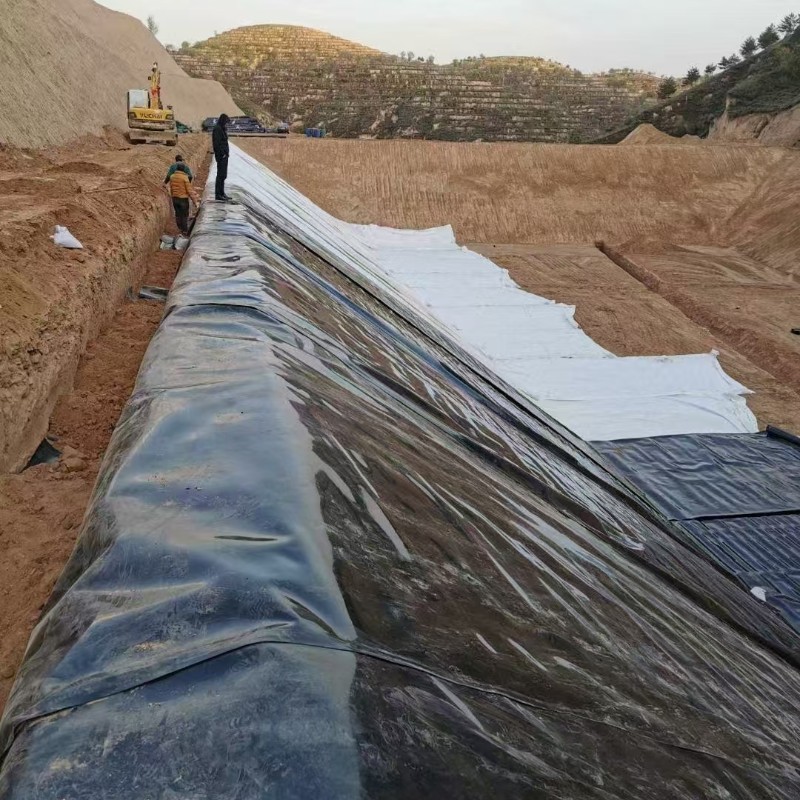

Landfills: HDPE geomembranes (1.5-2.5 mm) prevent leachate contamination, and LLDPE liners cover slopes.

Wastewater Ponds: Textured LLDPE liners resist chemical corrosion in industrial wastewater ponds.

Water Resource Management:

Aquaculture: Smooth LLDPE geomembranes (0.5-1.0 mm) ensure a non-toxic seal in fish ponds.

Reservoirs: HDPE liners (1.0 mm) paired with geotextile backings reduce seepage in arid regions.

Mining and Energy:

Tailing Ponds: Double-layer textured HDPE liners (2.0 mm) stabilize steep slopes in copper mines.

Oil and Gas: Conductive HDPE liners (surface resistivity <10⁵Ω) detect hydrocarbon leaks.

Infrastructure:

Tunnels: HDPE geomembranes can be used for waterproofing subway systems (e.g., 500 micron liners in subway projects).

Roads: Geotextiles can isolate the roadbed and prevent soil mixing.

Slope Stability: Choose a textured geomembrane with a high coefficient of friction (e.g., GMST-type LLDPE).

Chemical Resistance: HDPE liners are resistant to acids and alkalis (pH 1-14).

Required Flexibility: LLDPE liners are suitable for areas prone to settlement (e.g., seismic zones).

Certifications: ISO 9001, GRI-GM13, and ASTM D4439 ensure quality.

Smart Liners: Some HDPE geomembranes now have integrated sensors for real-time leak detection.

From high-quality HDPE geomembrane liners for landfills to textured LLDPE geomembranes for slopes, geosynthetics have revolutionized modern engineering. Partner with a certified supplier, such as BPM Geosynthetics, to customize a solution to your project needs.
